Biodegradable grease
SKF LGGB 2 is a biodegradable, low toxicity, synthetic ester oil based grease, using a lithium-calcium thickener. Its special formulation makes it most suitable for applications where environmental contamination is a concern.
Good performance in applications with steel-on-steel spherical plain bearings, ball bearings and roller bearings
Good low temperature start-up performance
Good corrosion inhibiting properties
Suitable for medium to high loads
Typical applications:
Agricultural and forestry equipment
Construction and earthmoving equipment
Mining and conveying equipment
Water treatment and irrigation
Locks, dams, bridges
Linkages, rod ends

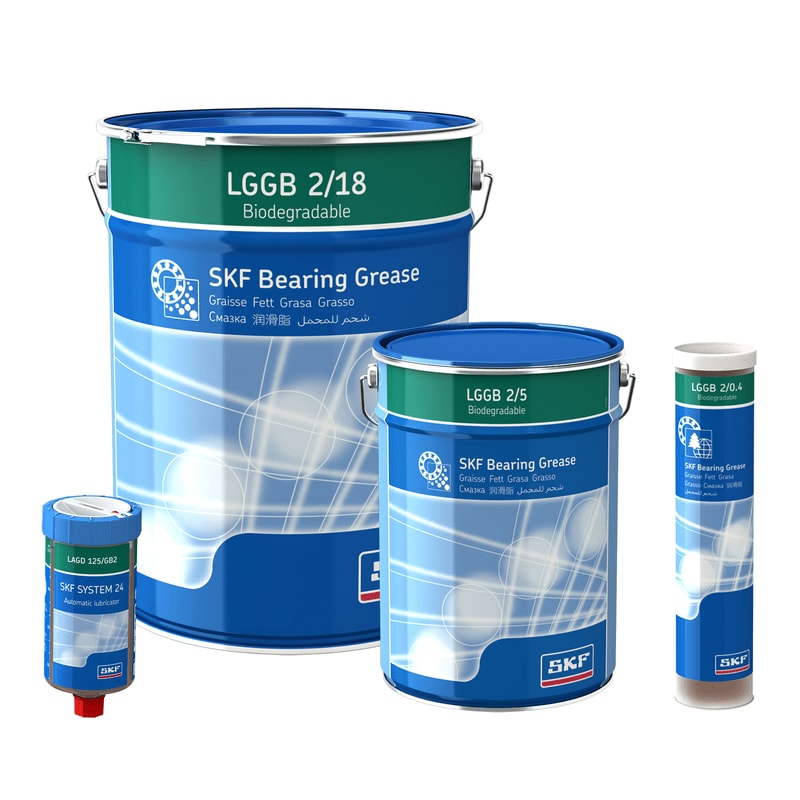

Available pack sizes | |
Packsize | Designation |
420 ml cartridge | LGGB 2/0.4 |
5 kg can | LGGB 2/5 |
18 kg pail | LGGB 2/18 |
180 kg drum | LGGB 2/180 |
Gas driven lubricator | |
LAGD series 125 ml | LAGD 125/GB2 |
Technical data | ||
Designation | LGGB 2/(pack size) | |
DIN 51825 code | KPE 2K-40 | |
NLGI consistency class | 2 | |
Thickener | Lithium/calcium | |
Colour | Off white | |
Base oil type | Synthetic ester | |
Operating temperature range | –40 to +90 °C (–40 to +195°F) |
|
Dropping point DIN ISO 2176 | >170 °C (>340 °F) | |
Base oil viscosity | ||
40 °C, mm²/s 100 °C, mm²/s |
110 13 |
|
Penetration DIN ISO 2137 | ||
60 strokes, 10–1 mm 100 000 strokes, 10–1 mm |
265–295 +50 max. (325 max.) |
|
Mechanical stability | ||
Roll stability, 50 hrs at 80 °C, 10–1 mm | +70 max. (350 max.) | |
Corrosion protection | ||
Emcor: | – standard ISO 11007 | 0–0 |
Water resistance | ||
DIN 51 807/1, 3 hrs at 90 °C | 0 max. | |
Oil separation | ||
DIN 51 817, 7 days at 40 °C, static, % | 0,8–3 | |
Lubrication ability | ||
R2F, running test B at 120 °C | Pass at 100 °C (210 °F)* | |
Rolling bearing grease life | ||
R0F test L50 life at 10 000 r/min., hrs | >300 at 120 °C (250 °F) | |
EP performance | ||
Wear scar DIN 51350/5, 1 400 N, mm 4–ball test, welding load DIN 51350/4, N |
1,8 max. 2 600 min. |
|
Shelf life | 2 years | |
* Typical value |
